Digstick™ WiFi Solar Automatic Chicken Coop Door

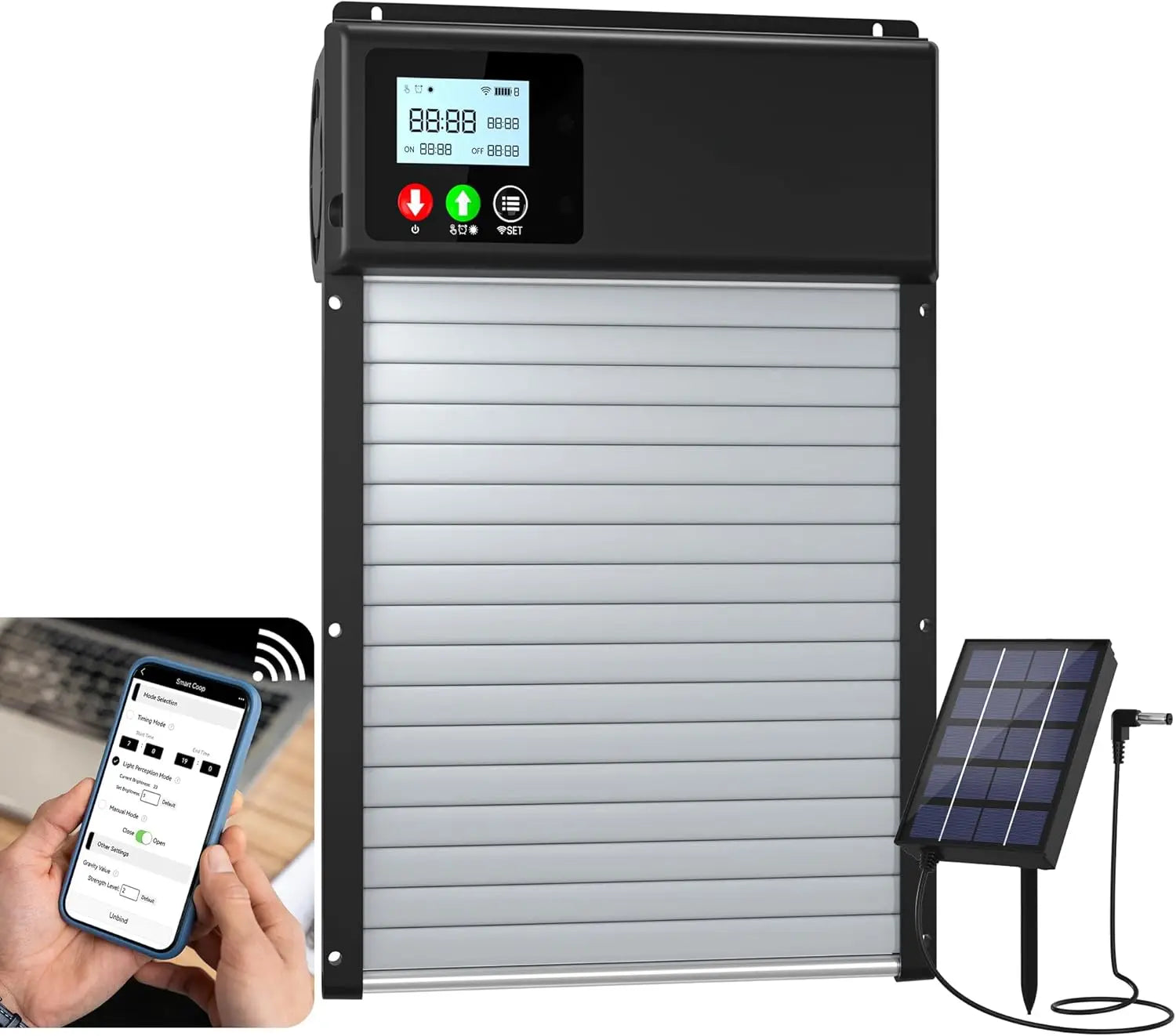

Digstick™ WiFi + Solar Automatic Chicken Coop Door (Model C1)

App-controlled, solar-powered security for your flock. Set schedules by Timer or Light Sensor, see status on the LCD screen, and control it from your phone—anytime, anywhere.

Why farmers choose Digstick (WiFi + Solar Model)

• WiFi Remote Control (App): After pairing in the app and connecting to Wi-Fi, open/close the door remotely and adjust settings from anywhere. Note: supports “4G/2.4G” Wi-Fi per manufacturer; 5 GHz networks aren’t supported.

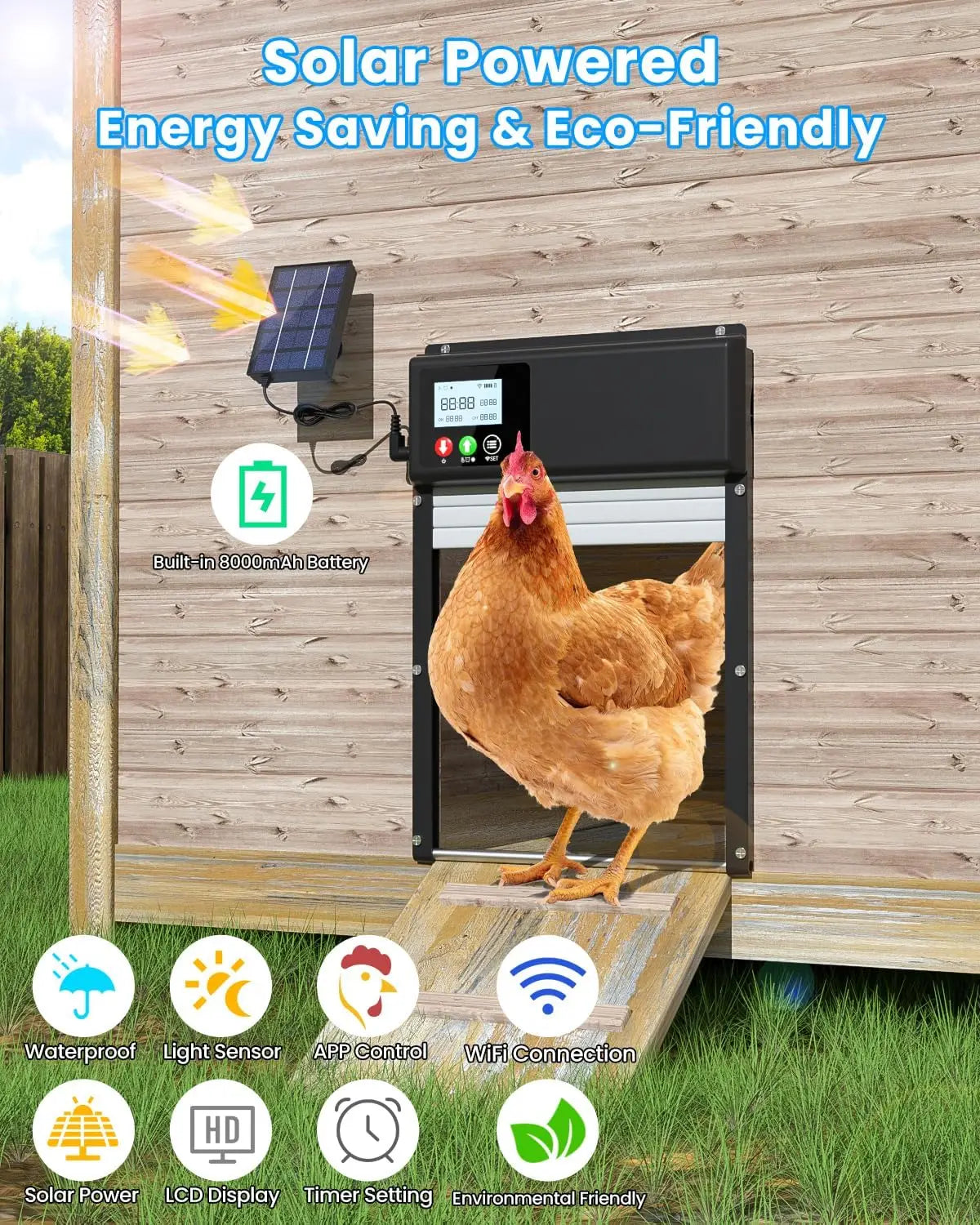

• Solar Powered with 8000mAh Battery: Built-in high-capacity battery charges via the included solar panel and USB-DC cable. No more AA swaps or power-outage worries.
• Flexible Control Modes: Choose Timer, Light Sensor (sunrise/sunset), or Manual. Perfect for weekends away and holidays.

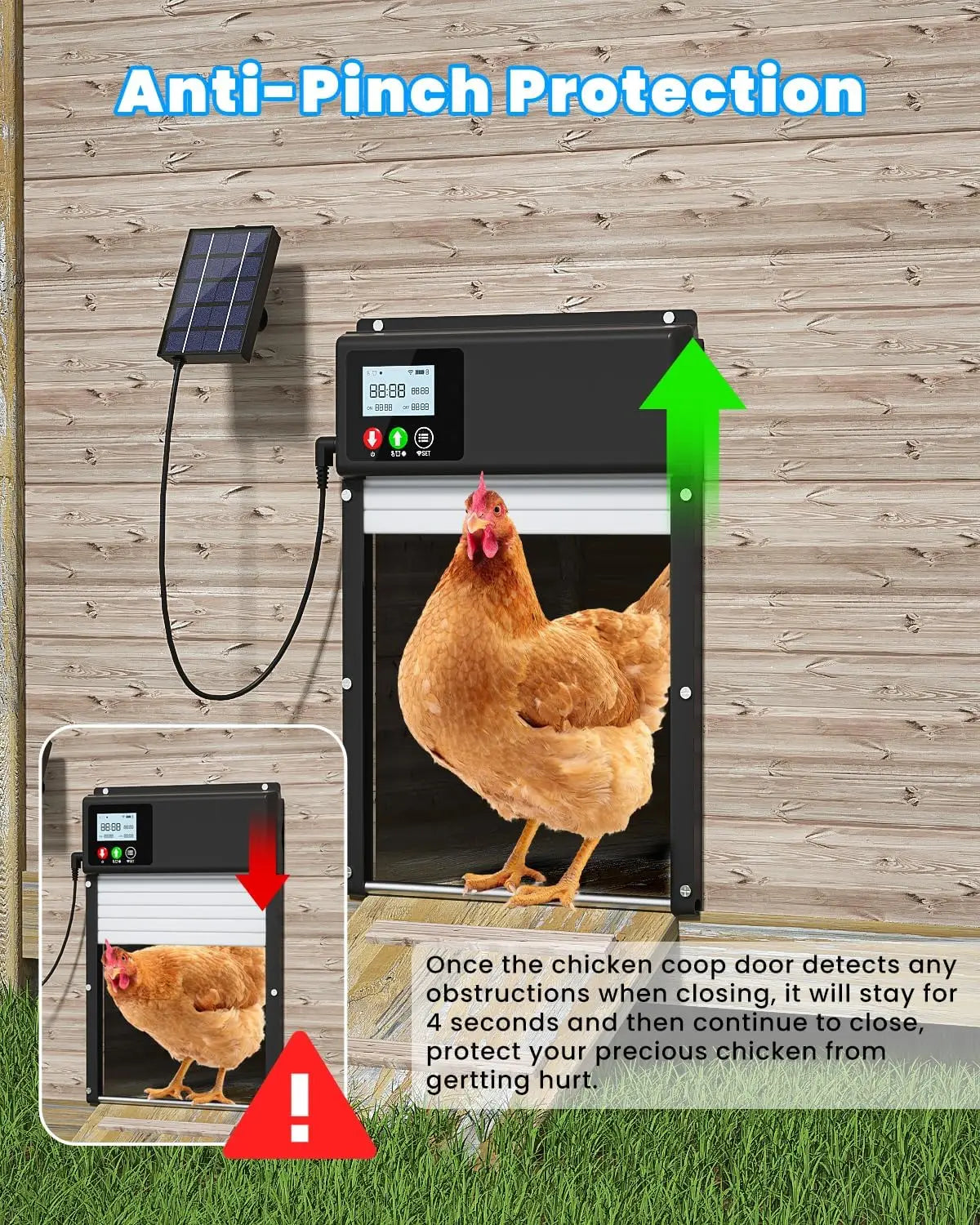

• Anti-Pinch Protection: If an obstruction is detected while closing, the door pauses ~5 seconds, then continues to close. (Safety program triggers once per close cycle.)
• LCD Screen Convenience: View current mode, open/close status, and battery level at a glance; set basics without the app.
• Built to Last: Premium aluminum door & frame with AES housing; weather- and dust-resistant for long-term outdoor use.
• All-Weather Performance: Designed to operate from −15°F to 140°F (snow, rain, dust).
• Predator Protection: A secure barrier against foxes, raccoons, snakes, skunks, weasels, and more.

Battery endurance varies with climate, lighting conditions, and schedule frequency. For shaded locations, supplement with USB charging.

Specifications

Brand	Digstick™
Model	C1
Farm Animals	Chicken (also suitable for similar small poultry)
Control	Mobile App (Wi-Fi), Timer, Light Sensor, Manual override
Power	Built-in 8000mAh battery; Solar charging + USB-DC cable (included)
Material	Aluminum door & frame; AES housing (plastic)
Operating Temp	−15°F to 140°F (approx.)
Safety	Anti-pinch program (pauses ~5s on obstruction; triggers once per close)
High-Concern Chemicals	None

What’s in the box

• Digstick™ WiFi + Solar Automatic Chicken Coop Door (Model C1)
• Solar charging panel (integrated or included per variant)
• USB-DC charging cable
• Mounting screws
• Quick Start Guide

Quick installation

1. Mount the unit to a flat coop wall with clear vertical travel for the door panel.
2. Connect the solar panel (if separate) and route the cable neatly; plug in USB-DC if doing an initial full charge.
3. Power on, pair with the mobile app, and connect to your 2.4G/“4G” Wi-Fi network.
4. Choose your control mode: Timer, Light Sensor, or Manual. Use the LCD to check status and battery level.

Tip: If your coop area has bright night lighting, prefer Timer mode for consistent closing times.

FAQs

Q: Which Wi-Fi does it support?
Connect to “4G/2.4G” Wi-Fi as indicated by the manufacturer. 5 GHz networks aren’t supported.

Q: Do I need the app to use it?
No—the LCD lets you set and check core settings. The app adds remote control and advanced options.

Q: What happens if a chicken is under the door?
The anti-pinch program pauses the door for ~5 seconds when an obstruction is detected, then continues. It activates once per close cycle.

Q: Can I run it without sun?
Yes. Use the included USB-DC cable to charge, or keep it topped up in shaded coops.

Digstick™ is a trademark of its respective owner. Specifications are based on the manufacturer’s description.
